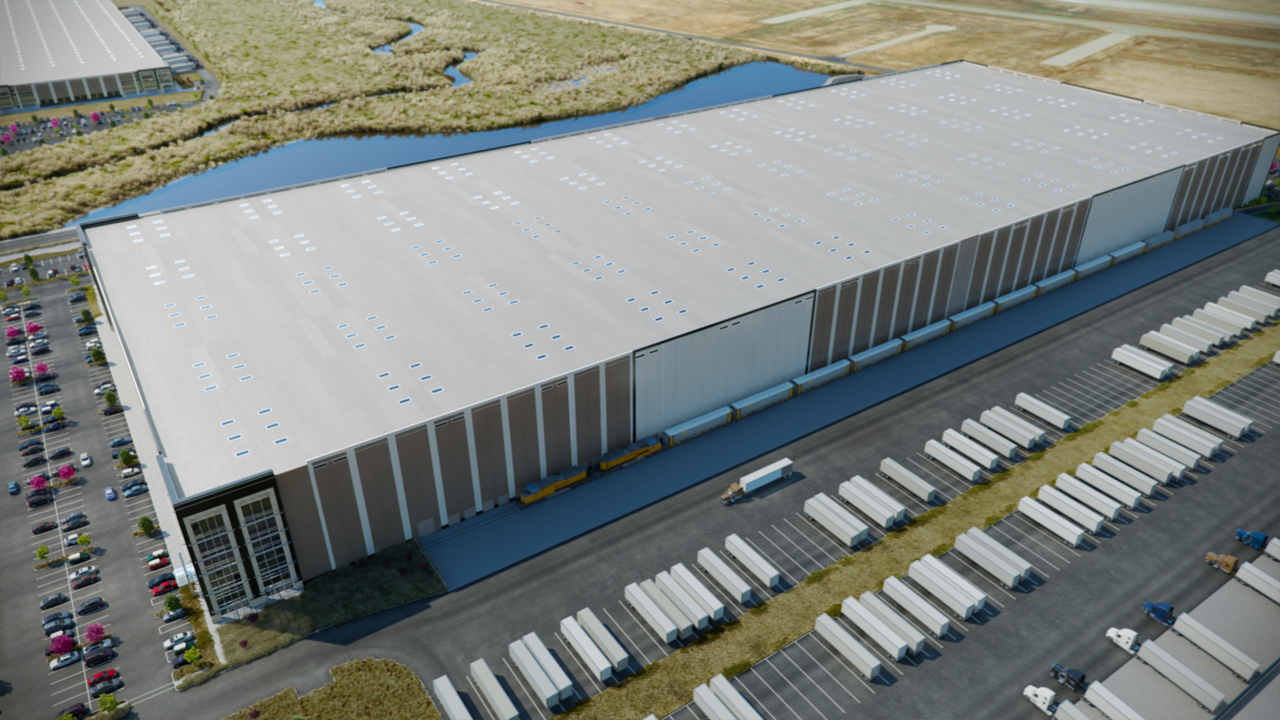

Building Size
±646,000 SF
Building Dimensions
420’ D x 1,538’ W
Divisible to
±200,000 SF

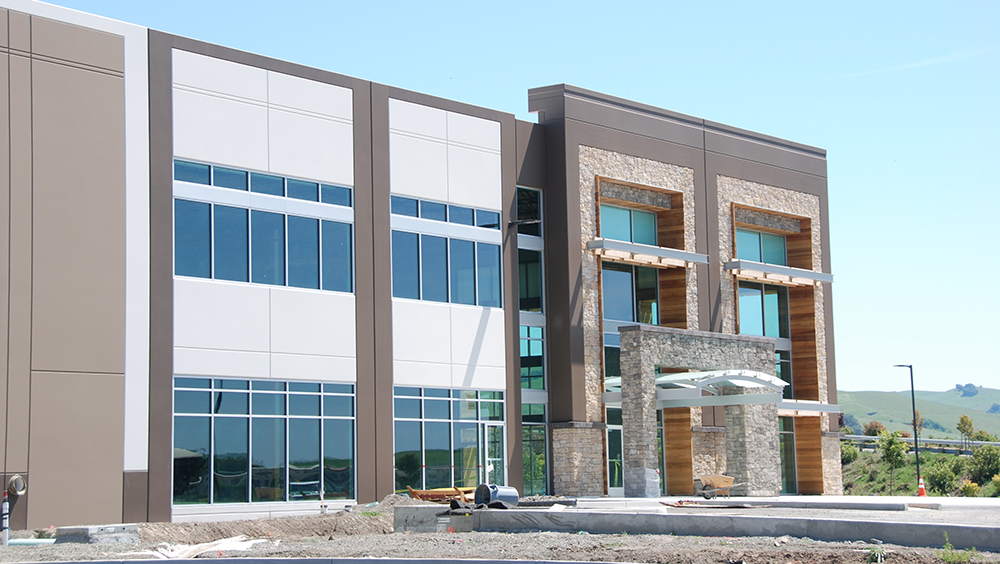

Office Size
±8,105 SF - South End ±2,105 SF - North End
Loading
Cross-Dock

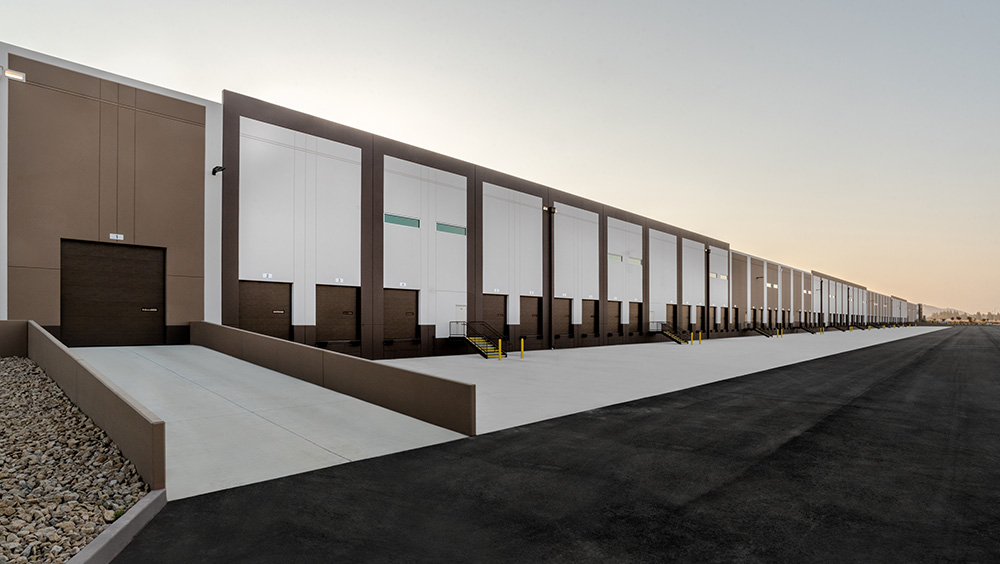

Dock-High Doors
150 (9’ x 10’)
Dock Equipment
73 – 35,000 lb. mechanical pit levelers w/ seals |
Grade Level Doors
4
Clear Height
32’-33’
Column Spacing
54’ x 50’
Speed Bays
60’
Yard
Fully fenced and secure, guard shack
Truck Court
125’ - 195’
Parking
373 auto stalls 126 trailer stalls |
Lighting
LED Motion Sensor Lighting

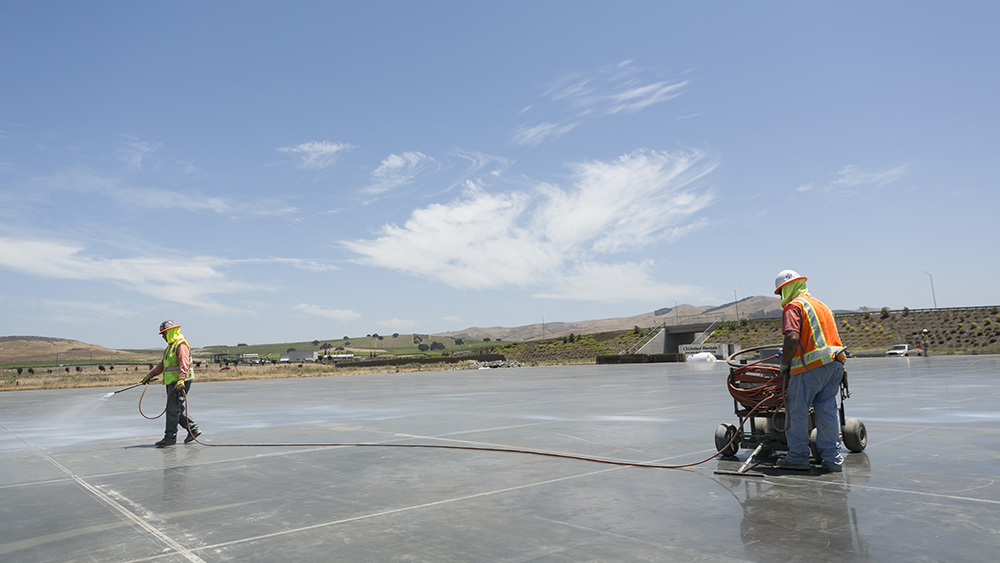

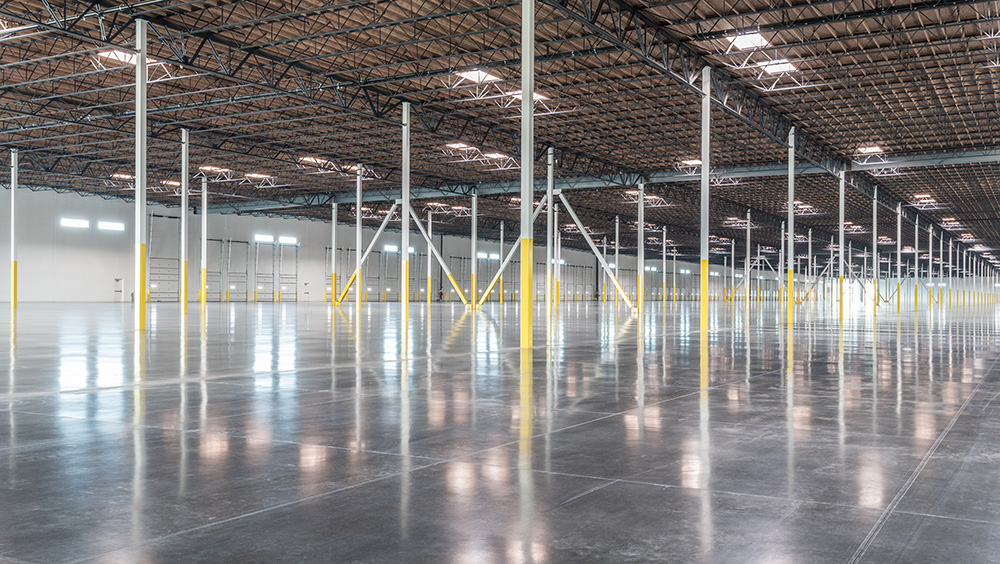

Warehouse Slab
8” fully reinforced
Fire Suppression
ESFR with K-17 heads
Air Circulation
22 Big Ass fans, 4 louvered doors
Skylights
2%, plus walls windows above loading docks
Power
5,000 amps @ 277/480v (2 x 2,500 amp services)
Cooling System
Readily available and priced |
|

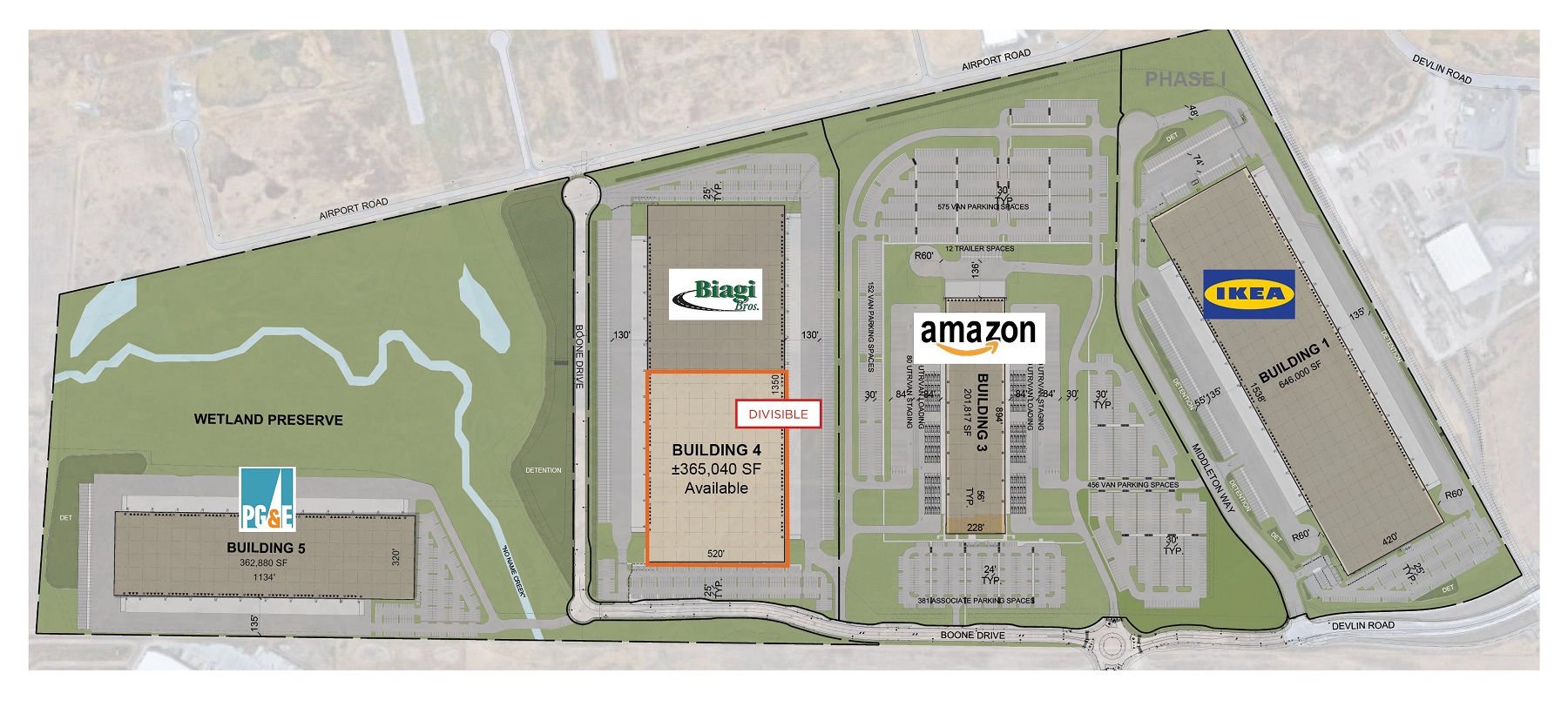

Building Size
±702,000 SF
Available Size
±365,040 SF
Building Dimensions
520’ D x 702’ W
Office Size
±4,375 SF
Loading
Cross-Dock
Dock-High Doors
34 (knock-outs for add’l 28 dock doors)
Dock Equipment
6 – 35,000 lb. mechanical pit levelers w/seals |
Grade Level Doors
1
Clear Height
40’
Column Spacing
54’ x 50’
Speed Bays
60’
Truck Court
175’ - 185’

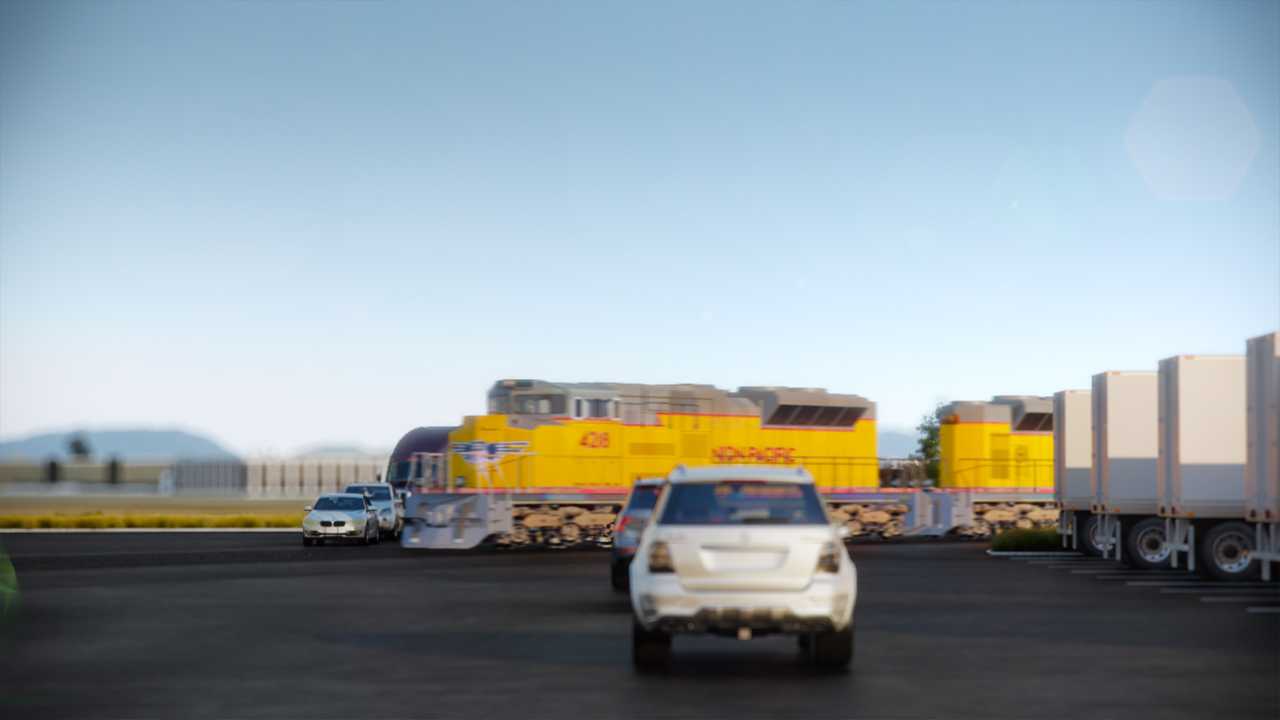

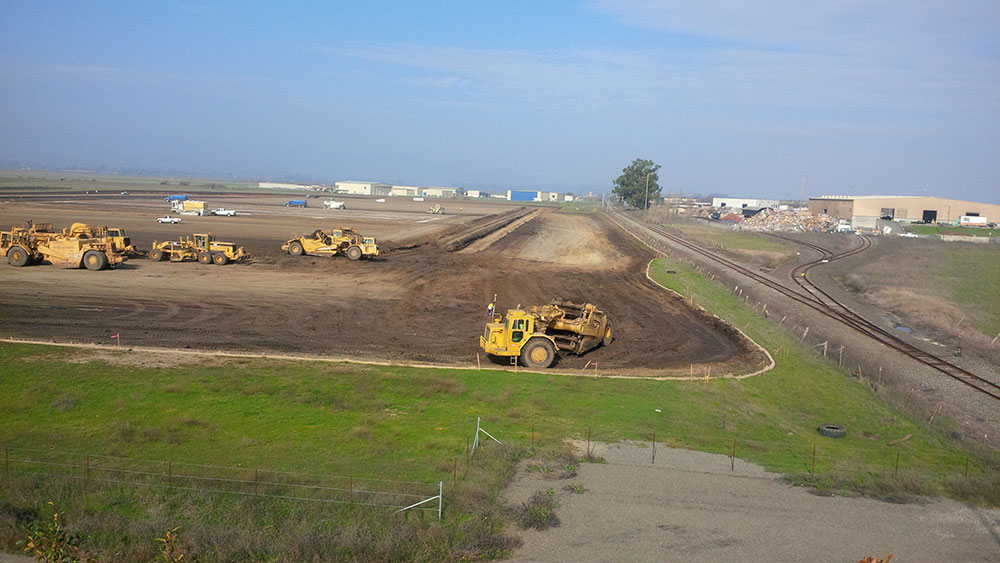

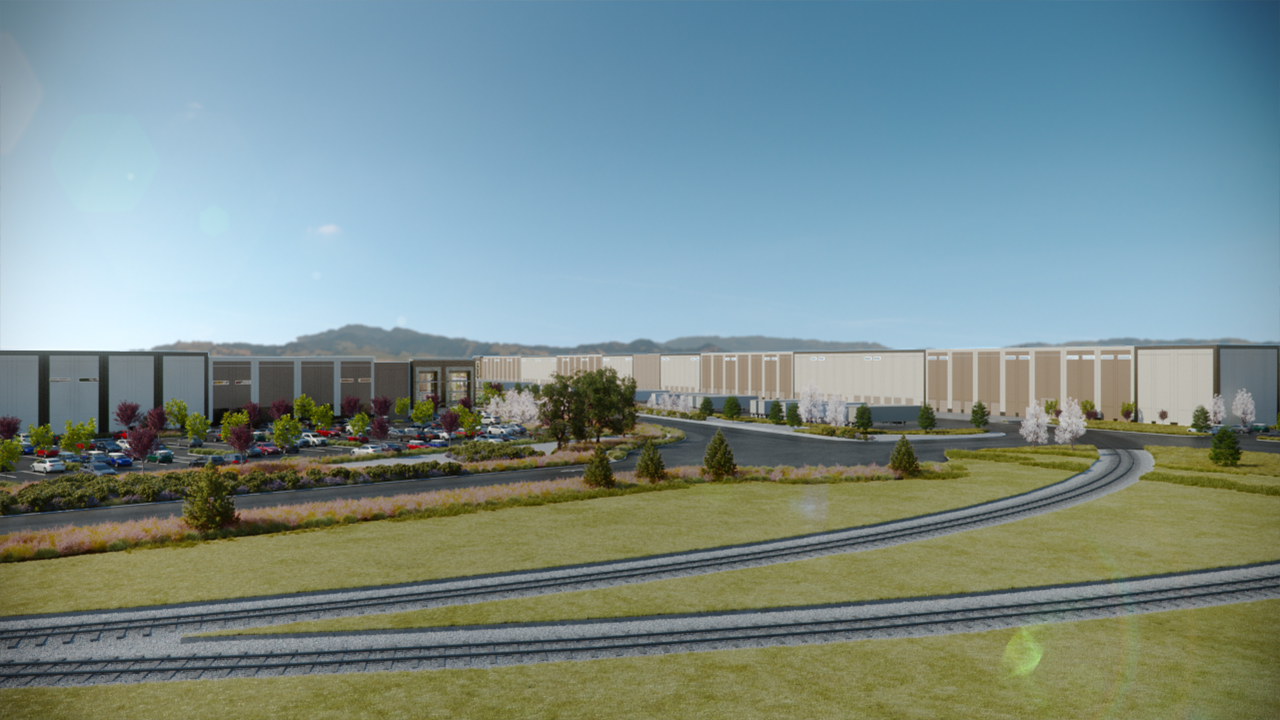

Rail
Rail served on east side (dock knock-outs for add’l loading)
Trailer Parking
280 auto stalls 106 trailer stalls |
Lighting
LED Motion Sensor Lighting
Warehouse Slab
8” fully reinforced
Fire Suppression
ESFR with K-17 heads
Yard
Fully fenced and secure
Insulation
R30 roof deck insulation
Power
4,000 amps @ 277/480v service to building |
|
|
|
Transit Days From Napa
|
|
1 day delivery
|
|
2 day delivery
|
|
3+ day delivery
|
|
